Theme Editor

When you create a survey, you want it to look harmonious and consistent with other parts of your application. You can achieve this with Theme Editor, a tool that enables you to create and customize survey UI themes.

Theme Editor is available online in our all-in-one demo or as part of Survey Creator. This article describes how to enable Theme Editor in Survey Creator, apply a custom theme to your survey, and set up communication with a server to enable your users to create, apply, and switch themes in your application.

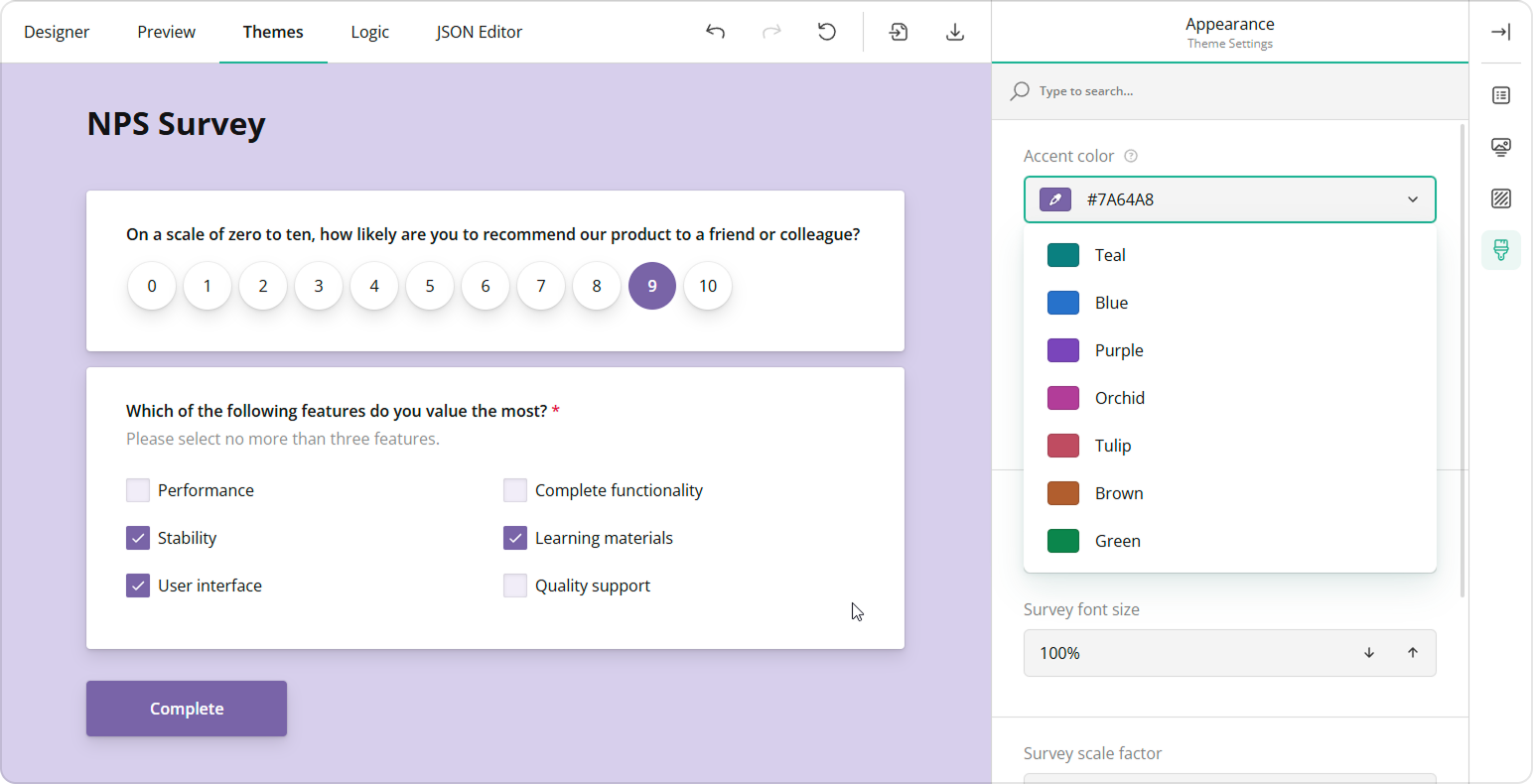

Theme Editor is integrated into Survey Creator as a separate tab. To display the tab, set the showThemeTab property to true:

import { SurveyCreatorModel } from "survey-creator-core";
const creatorOptions = {
  // ...
  showThemeTab: true
};
const creator = new SurveyCreatorModel(creatorOptions);

Theme Editor produces a JSON object with CSS variables and other theme settings. For information on how to obtain this object and apply it to a survey, refer to the following help topic in Form Library documentation: Create a Custom Theme.

If you want to apply a custom theme to a survey being configured in Survey Creator, assign the theme JSON object to SurveyCreatorModel's theme property:

import { SurveyCreatorModel } from "survey-creator-core";
const creatorOptions = {
  // ...
  showThemeTab: true
};
const creator = new SurveyCreatorModel(creatorOptions);

const themeJson = { ... };
creator.theme = themeJson;

Theme JSON objects can be stored on your server to let users save, share, and restore custom themes or switch between them. To save a theme JSON object, implement the saveThemeFunc function. It accepts two arguments:

• saveNo
  An incremental number of the current change. Since web services are asynchronous, you cannot guarantee that the service receives the changes in the same order as the client sends them. For example, change #11 may arrive to the server faster than change #10. In your web service code, update the storage only if you receive changes with a higher saveNo.

• callback
  A callback function. Call it and pass saveNo as the first argument. Set the second argument to true or false based on whether the server applied or rejected the change.

The following code shows how to use the saveThemeFunc function to save a survey model schema in the browser's localStorage or in your web service:

import { SurveyCreatorModel } from "survey-creator-core";
const creatorOptions = {
  // ...
  showThemeTab: true
};
const creator = new SurveyCreatorModel(creatorOptions);

creator.saveThemeFunc = (saveNo, callback) => {
  // If you use localStorage:
  window.localStorage.setItem("survey-theme-json", JSON.stringify(creator.theme));
  callback(saveNo, true);

  // If you use a web service:
  saveThemeJson(
      "https://your-web-service.com/",
      creator.theme,
      saveNo,
      callback
  );
};

// If you use a web service:
function saveThemeJson(url, json, saveNo, callback) {
  fetch(url, {
    method: 'POST',
    headers: {
      'Content-Type': 'application/json;charset=UTF-8'
    },
    body: JSON.stringify(json)
  })
  .then(response => {
    if (response.ok) {
      callback(saveNo, true);
    } else {
      callback(saveNo, false);
    }
  })
  .catch(error => {
    callback(saveNo, false);
  });
}

To load a theme JSON object into Theme Editor, assign the object to Survey Creator's theme property. The following code takes a theme JSON object from the localStorage:

const savedTheme = window.localStorage.getItem("survey-theme-json");
if (savedTheme) {
    creator.theme = JSON.parse(savedTheme);
}

You can also add UI elements that allow users to save, apply, and reuse custom themes. To implement this advanced functionality, refer to the following demo:

View "Add Reusable Themes" Demo

Refer to the following demo for details on Theme Editor's Property Grid customization:

Manage Theme Settings

• Themes & Styles
• Save and Load Survey Model Schemas: Angular | Vue | React | HTML/CSS/JavaScript
